Canopy

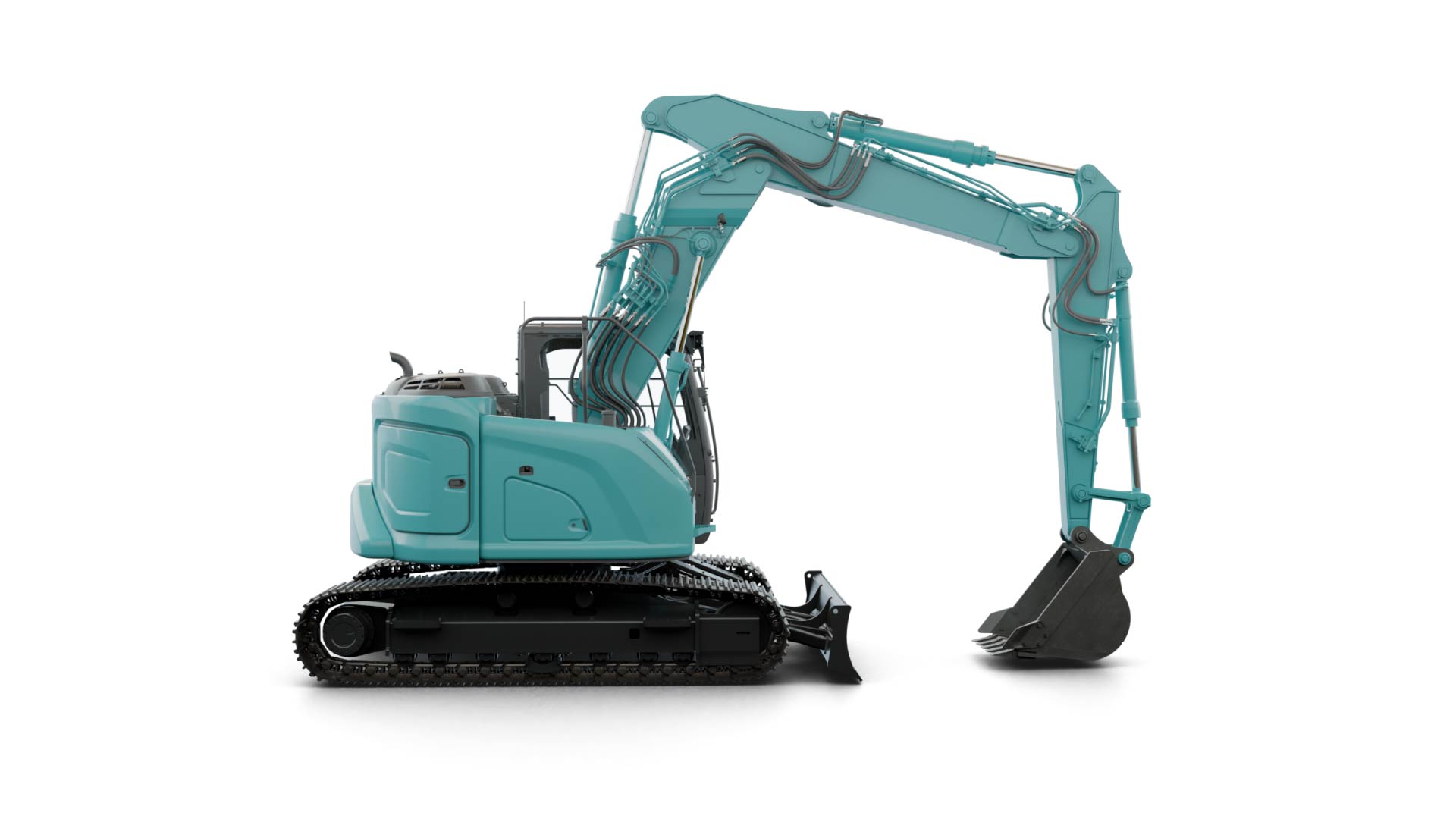

SK140SRLC-7

Product
On
Off
Labels
  1. 1

    Bucket

  2. 2

    Engine

  3. 3

    Comfortable cabin

  4. 4

    3 Sides safety camera system

  5. 5

    Multi-function capabilities

  6. 6

    iNDr filter

  7. 7

    Floating dozer

  8. 8

    Urea tank

  9. 9

    Minimal tail swing radius

  10. 10

    New hydraulic control division

  1. Bucket
    • Bucket digging force increased by 17%
    • Bucket capacity: 0.24 – 0.70 m³

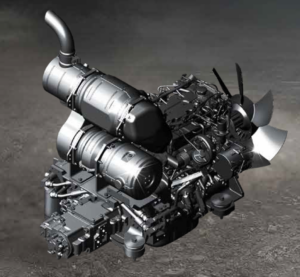

  2. Engine
    • Model: ISUZU 4JJ1XDDV A01
    • Engine power: 86kW / 2,200  min-1
    • Engine oiutput increased by 10%
    • Digging cylce time shotened by 10%
    • Engine power: 86kW / 2,200  min-1
  3. Comfortable cabin

    with air suspension seat, air conditioner blowing from the rear, lever angles that allow for comfortable operations, etc.

  4. 3 Sides safety camera system

    Our high-resolution, large display shows right, left and rear side cameras together. Multiple display allows the operator to customize viewing needs to enhance operator awareness and jobsite safety.

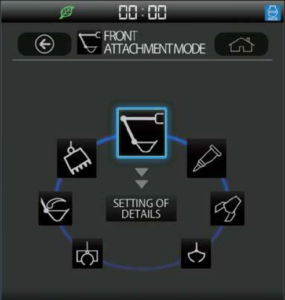

  5. Multi-function capabilities

    The flow-rate modes of the bucket, breaker, nibbler, and rotating grapple are set before delivery, which allows you to start operating immediately. Mode settings for other attachments, such as the tilt rotator, can easily be added or changed.

  6. iNDr filter

    A high-density mesh filter blocks dust intruding during air intake. This prevents the cooling device and the air cleaner from clogging with dust and maintains their performances. The ridges of the corrugated filter allow the air to pass through, and the grooves collect the dust, which prevents the filter from clogging.

  7. Floating dozer

    The optional floating dozer makes leveling work a lot easier. The floating function can be activated by the switch integrated into the dozer control lever.

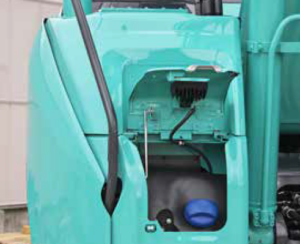

  8. Urea tank

    The urea filter cap is placed on the step for easy access.

  9. Minimal tail swing radius

  10. New hydraulic control division

    The new hydraulic control division ensures the right pressure at the right time for faster digging
